E2型式自润型滑轨
E2型式--自润型线性滑轨
E2自润型线性滑轨在端盖与刮油片之间带有润滑机构，滑块最外端备有可拆换式油箱。藉由可拆换油箱提供润滑油至润滑机构，由润滑机构润滑滑轨珠槽。
油箱内含导油元件，其特定的立体状使滑块在任意摆放或油量较少的时候均能接触到润滑油，而将油箱内的润滑油彻底吸出使用。
E2型式自润式线性滑轨尺寸表如下：
|
型号 |
E2自润模组尺寸 |
||||
|
W |
H |
T |
V |
L |
|
|
HG15C |
32.4 |
19.5 |
12.5 |
3 |
75.4 |
|
HG20C |
43 |
24.4 |
13.5 |
3.5 |
93.5 |
|
HG20H |
108.2 |
||||
|
HG25C |
46.4 |
29.5 |
13.5 |
3.5 |
100 |
|
HG25H |
120.6 |
||||
|
HG30C |
58 |
35 |
13.5 |
3.5 |
112.9 |
|
HG30H |
135.9 |
||||
|
HG35C |
68 |
38.5 |
13.5 |
4.5 |
127.9 |
|
HG35H |
153.7 |
||||
|
HG45C |
82 |
49 |
16 |
4.5 |
157.2 |
|
HG45H |
189 |
||||
|
HG55C |
97 |
55.5 |
16 |
4.5 |
183.9 |
|
HG55H |
222 |
||||
|
HG65C |
121 |
69 |
16 |
4.5 |
219.2 |
|
HG65H |
278.6 |
||||
|

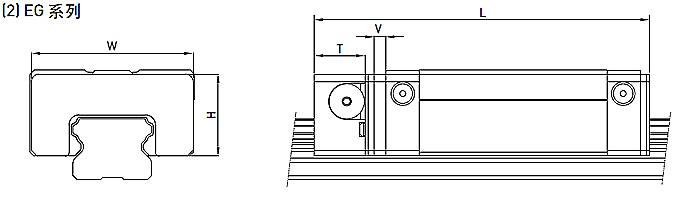

型号 |
E2自润模组尺寸 |
||||
|
W |
H |
T |
V |
L |
|
|
EG15S |
33.3 |
18.7 |
11.5 |
3.0 |
54.6 |
|
EG15C |
71.3 |
||||
|
EG20S |
41.3 |
20.9 |
13 |
3.0 |
66 |
|
EG20C |
85.1 |
||||
|
EG25S |
47.3 |
24.9 |
13 |
3.0 |
75.1 |
|
EG25C |
98.6 |
||||
|
EG30S |
59.3 |
31 |
13 |
3.0 |
85.5 |
|
EG30C |
114.1 |
||||
|
型号 |
E2自润模组尺寸 |
||||
|
W |
H |
T |
V |
L |
|
|
RG25C |
46.8 |
29.2 |
13.5 |
3.5 |
114.9 |
|
RG25H |
131.4 |
||||
|
RG30C |
58.8 |
34.9 |
13.5 |
3.5 |
126.8 |
|
RG30H |
148.8 |
||||
|
RG35C |
68.8 |
40.3 |
13.5 |
3.5 |
141.0 |
|
RG35H |
168.5 |
||||
|
RG45C |
83.8 |
50.2 |
16 |
4.5 |
173.7 |
|
RG45H |
207.5 |
||||
|
RG55C |
97.6 |
58.4 |
16 |
4.5 |
204.2 |
|
RG55H |
252.5 |
||||
|
RG65C |
121.7 |
76.1 |
16 |
4.5 |
252.5 |
|
RG65H |
315.5 |
||||
